這是一架存在心中好久的飛機,直到好友 陳志昇 的割愛,

才讓我得以圓夢 BAC 1/48 TSR2   *** 開工20170604

先假組合過癮一下是必須的,長達54.5公分的巨大機身

真的很壯觀 The fuselage is 54.5cm ,a giant jet.

開模精細又不含糊的愛國模型,

滿心期待的預作油漬處理,後來卻...(稍後就知道怎麼了)

一體成形的前輪艙,當然細節不可能太多

 the nose gear nacelle was made in one piece

還附有樹脂改套的排氣管,太感謝了

the CMK kit for the nozzle

機身上半部是採用多塊分模,所以只有這一部分需要

稍作研磨處理接合線

the fuselage was separated into left and right,but

most of the line will be cover by another piece,so

there is no need too many putty and sanding

機身底部也是多塊分模,只有這裡有左右機身黏合線,省下

了接合後的補土研磨時間,

這裡是整片的完美下機身,一體成型無接縫

the lower parts for the fuselage was one piece,too.

a perfect design for the kit!

先跟另一架同是天涯淪落人的飛機 CF-105 來個合照,

兩架都是沒能一展長才的跨時代設計

these two jet are so sad that abandoned for some

reason by thier country!

到這裡發現原廠組裝說明書有問題了,21C.24C這兩塊零件

原來要黏在大機身是錯誤的,應該是黏在機身後段上蓋才對

the instructions is wrong!

the 21C & 24C cannot cement on the main fuselage,

must to cement on the 24B first!

進氣口通道開模緊緻,

the intake is so good!

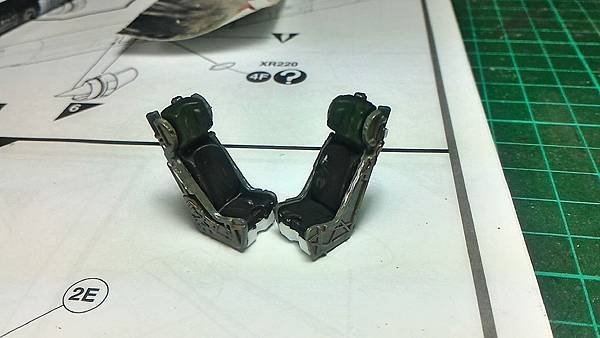

彈射椅的模具略嫌簡單,只好再加一點...

the seat looks so simple,I have to add something.

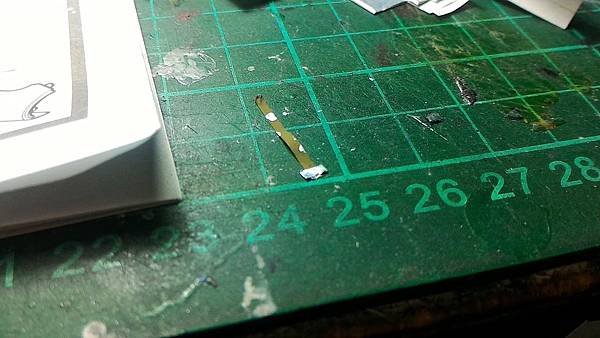

用紙膠帶與鋁箔做的安全帶

The safebelt was made by the musktape and

alluminum foil,

效果似乎還可以                           20170614

座艙細節就真的簡單了,但是我不開艙蓋,就省了!!

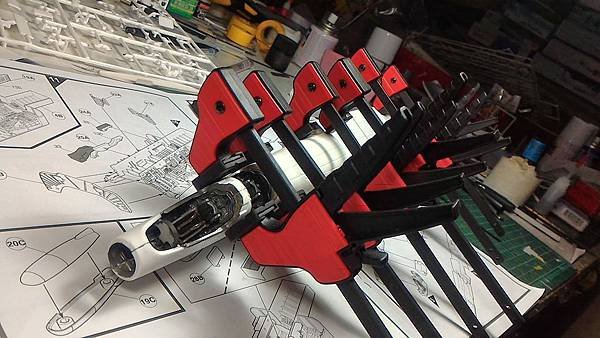

機身左右黏合,動用夾具幫忙,塑膠射出成型漂亮,不用太

多的修整,                                20170614

因為開模是沿機身蒙皮,所以不用多費心

這塊零件的方向錯誤了!! 平面要向後才對

The direction of the part 4F is wrong,you have to

glue on the opposite direction

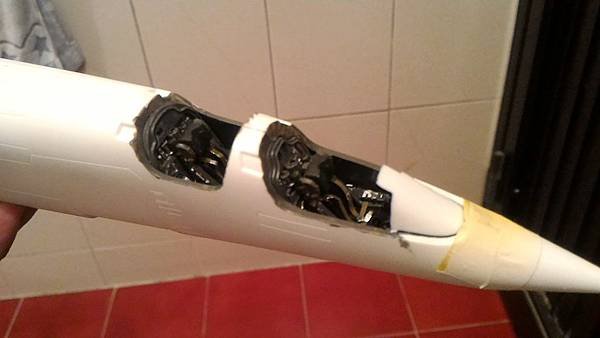

座艙完成                                 20170615

試試看能否站立,                          20170615

站立測試通過就可以準備噴漆
ready for painting

機翼先試試看

貼上水貼就是又向前一步了!                20170617

put on the decals means go ahead more!!

為主輪架預做補強動作,打洞埋入鐵絲

the structure for main gear look so weak,so I do

this things to enhance the gear

因為這樣的設計在塑膠材料的應力是絕對會發生悲劇的

同時進行的水貼工作

機身第一次上色

機身噴漆完成,再次假組合

外八字的輪架,還要調正

一開始高興的舊化,到這裡發現是一場空,蓋上輪蓋就....

不見了!!

I made the weathering works first,but now thry

were covered and disappeared!

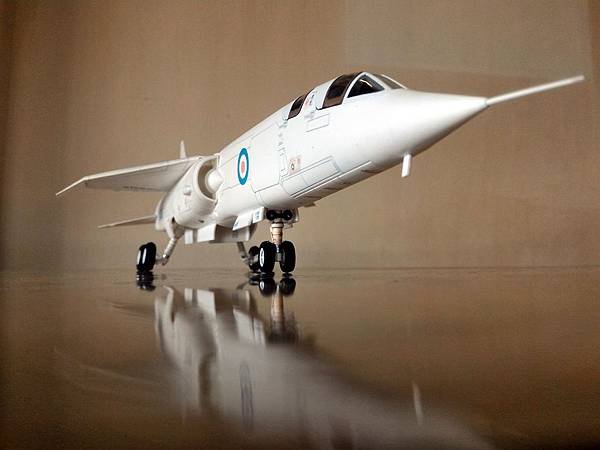

到這裡大致完成了!  我的華碩手機的效果還真的不錯

再次與同比例的 CF-105 ARROW 合照      20170618
